Description
Voodoo Vintage’s Relic Girder Fork – 18″ Mid Width
*Now available through Hugh’s HandBuilt, we will be keeping these “ready to ship” – Meaning if you CAN add it to the cart, and checkout – we have it in stock it will ship within a few days! No Backorders or long wait times. A Hugh’s HandBuilt Exclusive.

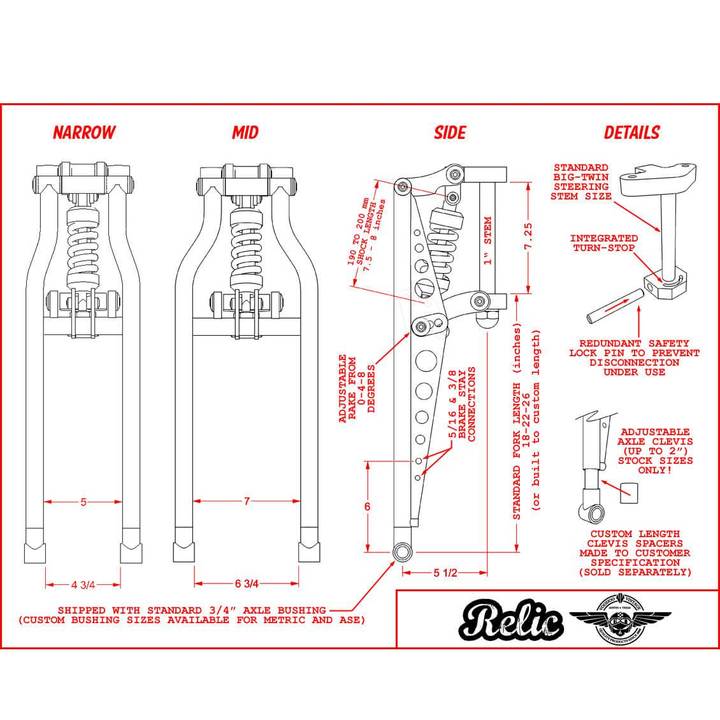

There are so many innovations on this stunning front end! Not satisfied with your rake? No problem! Same goes for the fork length. Adjust both with very little effort and switch back again when you are ready!
Accommodations for an internal fork stop have been provided. Use a Pro-One bottom bearing race with stop tab (Not Included) and don’t worry about drilling and tapping holes. Everything is already taken care of!
The RELIC accepts most any performance mountain bike shock that are 180 to 200 mm (7.5″ to 8″ eye to eye) with a minimum 2 inches (25 mm) of travel. Spring rate is up to your personal preference but we have found that 350 to 400 lbs is a great starting point for most bikes up to 500 lbs. (Voodoo Vintage’s Preferred shock Can be added below at checkout)
Also built into the RELIC are mounting points for a variety of aftermarket “Springer type” brake systems. The bottom two holes on the leg gussets are 5/16 and 3/8 I.D. allowing stand-offs to be used when mounting your brake hardware.
The RELIC is shipped with a standard 3/4″ axle kit. The axle bushings are included as well and can be modified to use metric axles should you need.
Hugh’s HandBuilt offer’s the RELIC in 18″ Mid Width (Their Most Popular Seller!)
We CANNOT advise what brake set up to use or the right size relic for your particular bike. You will need to measure your own and make your own decision. This is a custom item, requiring a few of your own custom touches to create your own badass build!

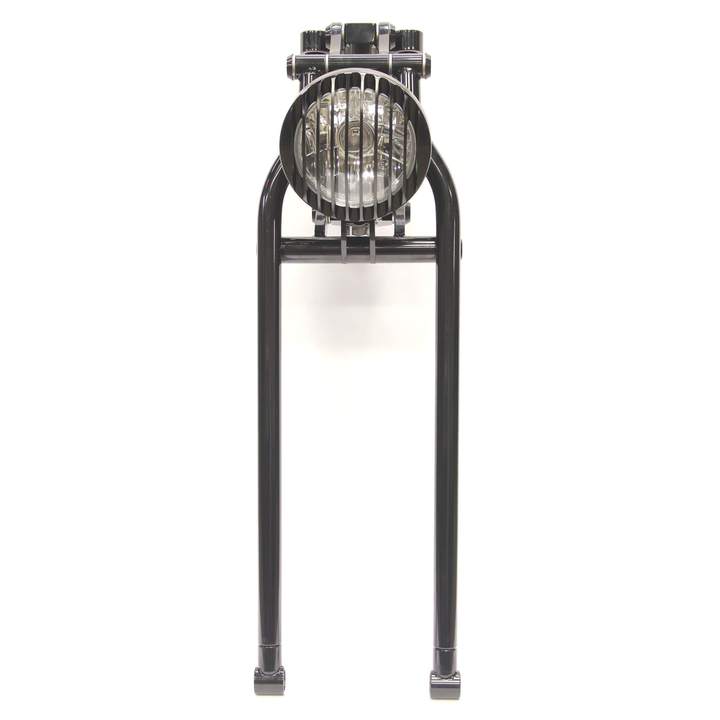

Images Shown are Examples, Item does NOT include Headlight, Powdercoating, Brakes, Etc…
More Details, Install Instructions, and More Directly from Voodoo Vintage – Clicky Clicky

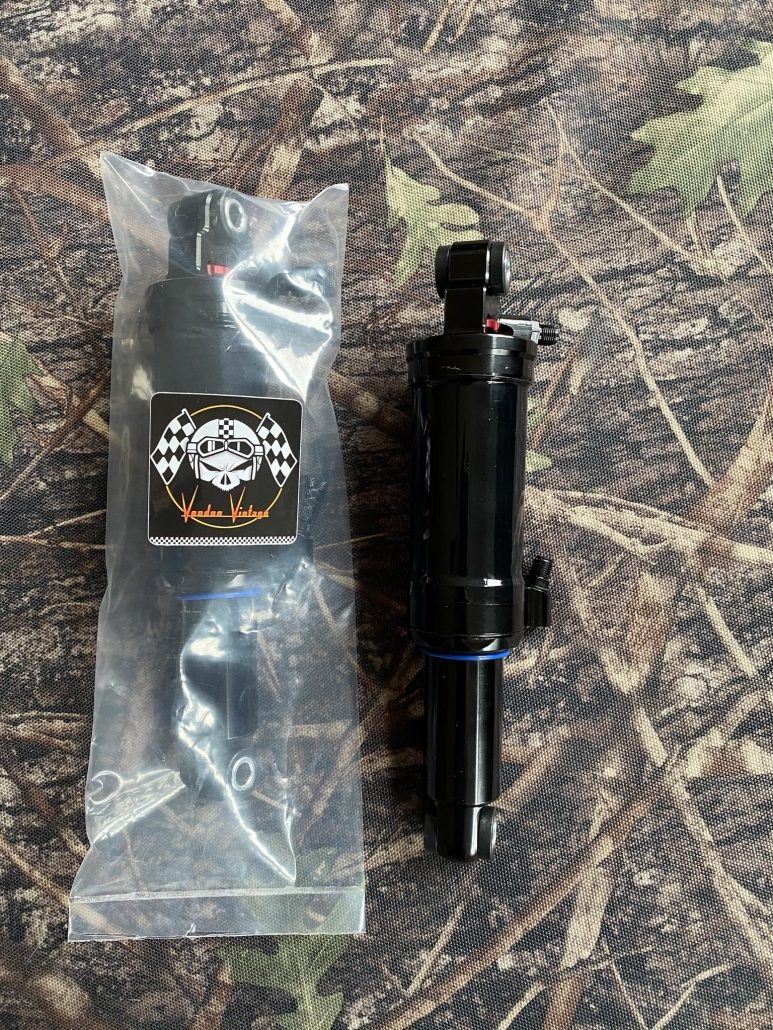

Voodoo Vintage Relic Girder Shock
*Optional Air Shock Add $185 At Checkout
