750cc XS650 Engine, Rephased and Ready to run!

/in /by

This is a fairly rare opportunity for someone NOT on the Current HHB Engine Building backlog to get an engine for this year.

This is out of my PERSONAL bike, I’ll be doing something else with the chassis soon (email me if interested in the rolling chassis) and has less than 25 miles on it since it was first built.

*This is JUST for the engine, NOT the entire bike*

  • 750cc JE High Compression Pistons (10:1)
  • NEW Big Bore Liners
  • 277 Rephase by HHB
  • 256 Camshaft
  • Ported Head
  • NOS Valves
  • NEW Valve Guides
  • NEW Valve Springs
  • NEW Rocker Arms
  • Stainless Rocker Plugs
  • 277 Ignition by Pamcopete
  • Hugh’s HandBuilt PMA Charging System (NEW)
  • 5th Gear OD
  • Polished Shift Rails
  • EBC Clutch Plates
  • NEW Steel Clutch Plates
  • EBC Clutch Springs
  • HD Throwout Bearing
  • 7 into 6 HHB Modded Clutch Pack
  • NEW 447 Crankshaft Rods
  • New Gaskets
  • New Oil Seals
  • New Oil Pump
  • New Sump Filter
  • Polished Engine Covers
  • Re-Chromed Cam Covers
  • Polished Valve Covers
  • Stainless Hardware
  • Kick-Only (no Electric start provision)
  • Foot Operated Clutch (easily converted to hand clutch if desired)
  • New Shift Shaft
  • Aqua Blasted Cases
  • Aqua Blasted Head and Cylinders
  • New Oil Tube Base Fitting
  • New Oil Tube
  • New Copper Oil Seals
  • New Camchain
  • New Cam Guides
  • Brass Head Washers
  • New Clutch Worm Gear
  • 1 Piece Clutch Rod
  • Custom Drilled Side Cover

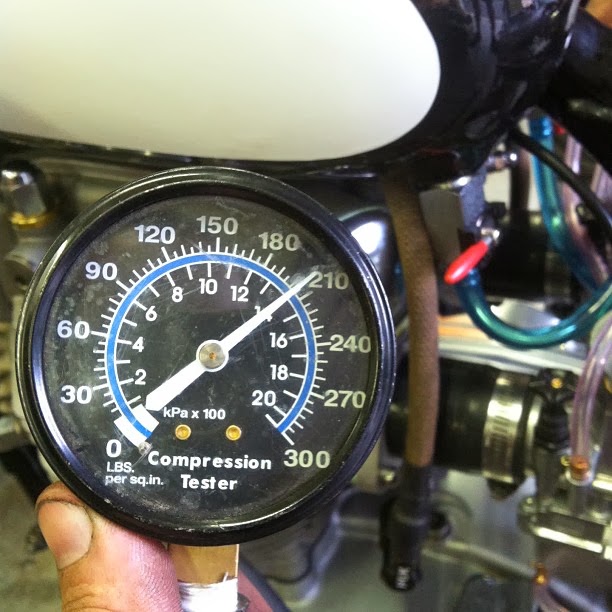

This engine has 205 lbs of compression, is as fresh as they get, and is available for $6350 (plus your free spinning core)   This is slightly below retail for the full cost of the build.

Contact Hughshandbuilt@gmail.com for purchasing information.

*If interested in the Rolling Chassis, make an offer.  Will include EVERYTHING except the engine, carbs, charging system, etc…
